| 起源の場所: | 中国 |
| ブランド名: | RESUN |
| 証明: | FCC Part 15 Class B; UL1741,UL1741SA&SB all options, UL1699B, CSA -C22.2 NO.107.1-01,RSD(NEC690.5,11,12) |

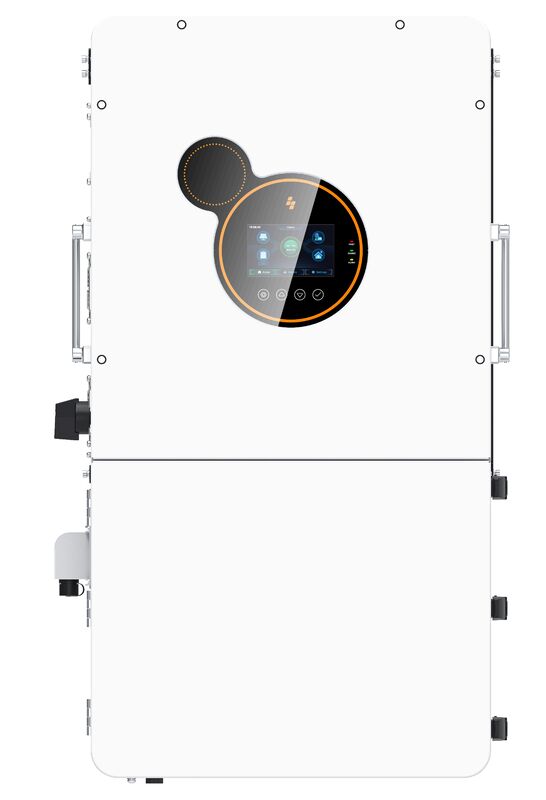

| モデル番号: | R-16KUS |
| Model | RO-10KUS |
|---|---|
| Inverter Output | |
| Rated Output Power | @240V 12000W @208V 10400W |
| Max. Peak Power | 1.5 times rated power @10S 2 times rated power @0.5S |
| Rated Output Voltage | 120/240Vac (Split-phase) 120/208V (Three-phase) |
| Max. Continuous Output Current | 50A |
| Load Motor Capacity | 6HP |
| Locked Rotor Amps (LRA) | 123A (Ipeak) |
| Rated AC Frequency | 50/60Hz |
| Waveform | Pure Sine Wave |
| Parallel Capacity | 1 to 6 units (2 or more units can form a three-phase output) |
| Battery | |
| Battery Type | Li-ion / Lead-Acid / User Defined |
| Rated Battery Voltage | 48Vdc |
| Battery Voltage Range | 40 ~ 60Vdc |
| Max. Grid Charging Current | 200A |
| Max. Generator Charging Current | 90A |
| Max. Hybrid Charging Current | 240A |
| PV Input | |
| No. of MPPT Trackers | 2 |
| Max. PV Array Power | 9000W + 9000W |
| Max. PV Input Current | 32A + 32A |
| Short-Circuit Current Isc | 40A + 40A |
| Max. Open Circuit Voltage | 550Vdc / 550Vdc |
| MPPT Voltage Range | 125 ~ 450Vdc / 125 ~ 450Vdc |
| Grid / Generator Input | |
| Input Voltage Range | 90 ~ 140Vac |
| Input Frequency Range | 50Hz / 60Hz |
| Continuous Grid Pass through Current | 200A |
| Efficiency | |
| MPPT Tracking Efficiency | 99.9% |
| Max. Efficiency | 97.5% |
| CEC Efficiency | 96.5% |
| Communication | |
| Communication Port | RS485 / CAN / USB / Dry contact |
| External Modules | Wi-Fi / GPRS (Optional) |
| Basic Data | |
| Dimensions | 840 × 440 × 260mm |
| Weight | 48kg |
| Protection Degree | IP65 |
| Operating Temperature Range | -25°C to 60°C, >45°C derated |
| Noise | <60dB |
| Self-consumption | <100W |
| Cooling Method | Heat sink + intelligent fan cooling |
| Certified Specifications | |
| Safety Standards | UL1741 & IEEE1547.1-2020, CEC, RULE 21, HECO |
| EMC | FCC 15 class B |
| RoHS | Yes |
